Bluetooth Nintendo Switch Gamepad Controller

1. Controller features

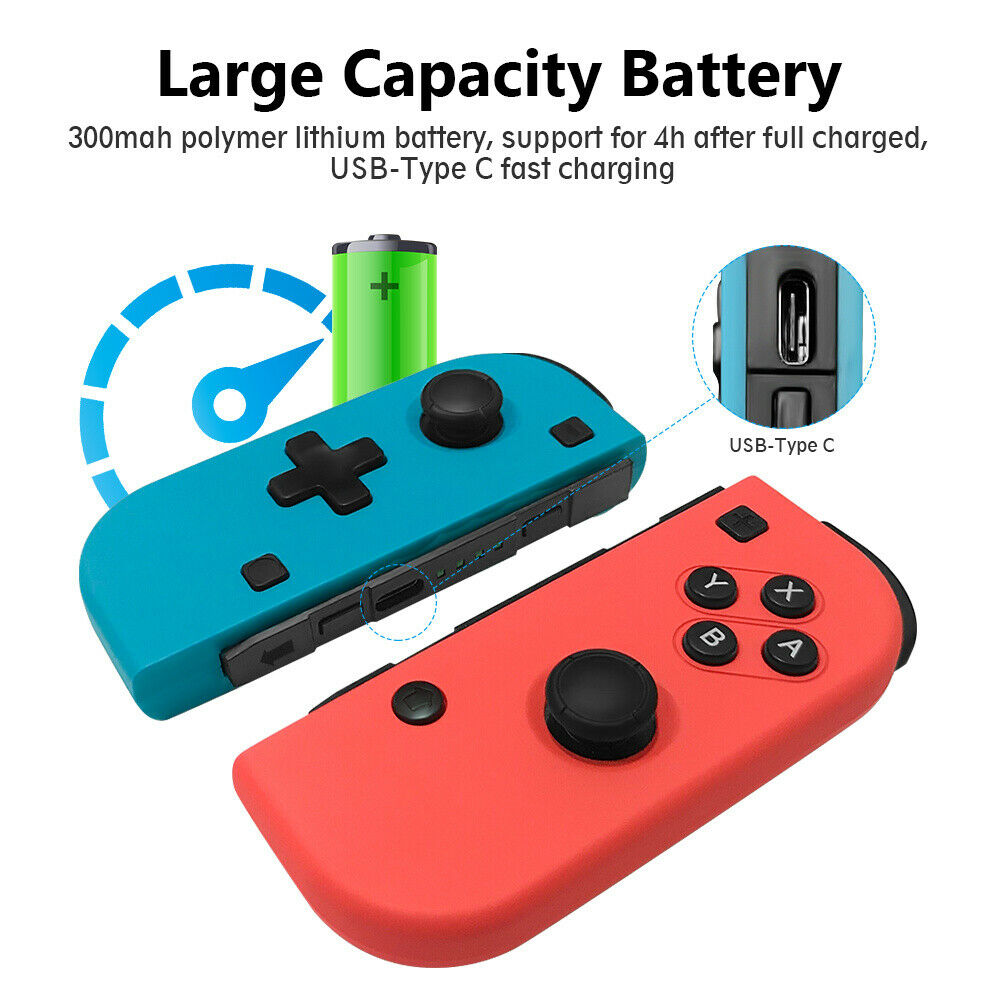

1) This pair of controllers is compatible with Switch console and only supports wireless connection. 2) It can be used as an entire controller also can be used as two independent controllers. 3) No need to install any driver, it can be used once connected to Switch console. 4) One-key connecting method for ease of handling. 5) Wireless connection, lower interference and stable connecting signal. 6) Built-in with 300mAh polymer lithium battery, it can be continuously used for around 4h after fully charged. 7) It supports motion sensing function via built-in Gyro in each controller. 8) It supports vibration function via built-in motor in each controller. 9) Multiplayer games can be played by connecting more wireless controllers simultaneously to a Switch console. 10) Ergonomic design and light weight construction make it comfortable even for long hours of continuous gaming. 11) It can be upgraded by update software through USB cable connecting to PC.

2. Key brief description

1) HOME key: Power controller on or execute commands from Switch console.

2) D-Pad: Up, down, left and right. It can be easily operated on eight directions; it acts as a set of function control keys when using a Left Controller as an independent controller. 3) Function control keys: A, B, X, Y. Perfect key design, sensitive and quick for finger operation.

4) Left stick and Right stick: Neoteric 3D stick can be operated precisely on 360° all-round. 5) Functional keys: L1, R1, L2, R2. Trigger and shoulder keys perform quick response function.

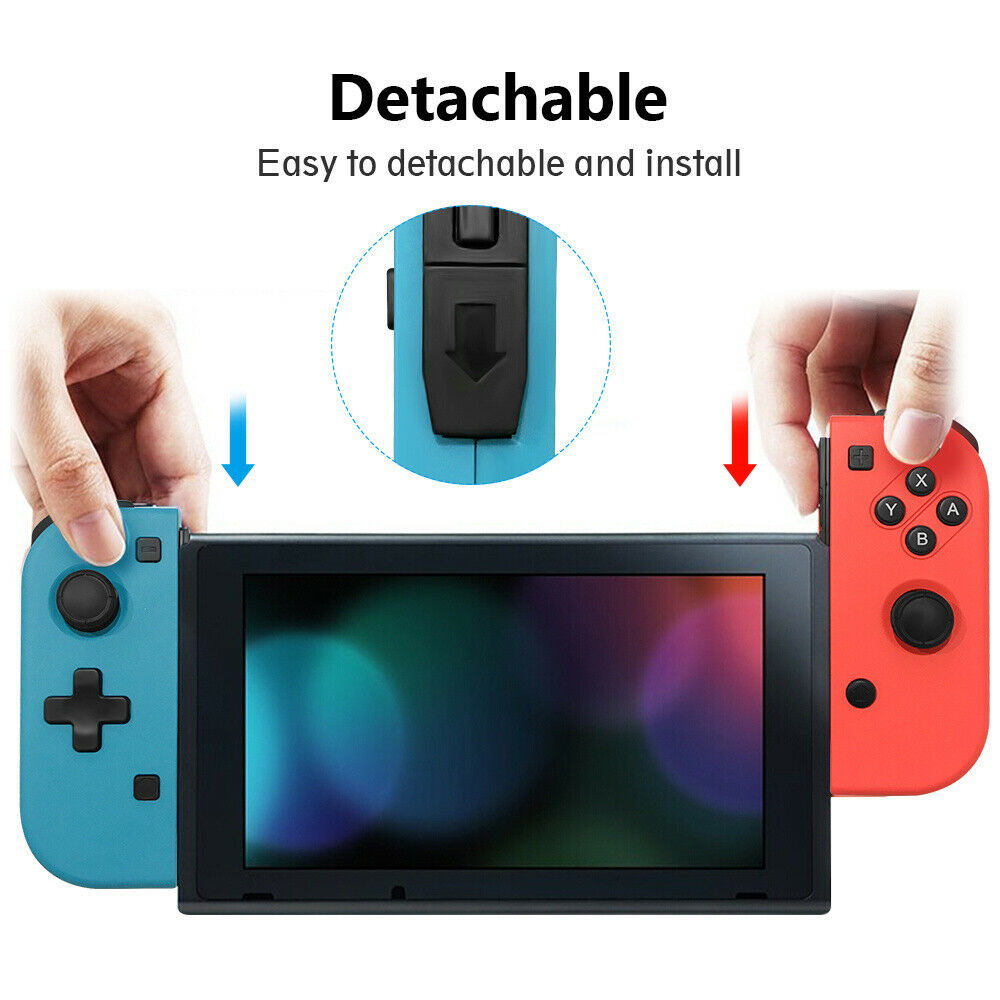

6) Screenshot key: Take screenshot and store; it acts “HOME” key when using a Left Controller as an independent controller. 7) Reset key: Short press this key in reset hole to power controller off to disconnect controller from console. 8) Unlock key: Left unlock key and right unlock key. Press and hold the both unlock keys simultaneously to release Switch console.

3. Connecting instruction

1) Connecting to a Switch console for the first time. Power a Switch console on, on the main interface of the console, click (by using your finger) “Controllers” → “Change Grip/order” to come to this pairing pattern interface “Press L + R on the controller”, ignore “L + R”, then operate controller according to the following steps as below:

Note: Please pair and connect each controller at this pairing pattern interface of a Switch console.

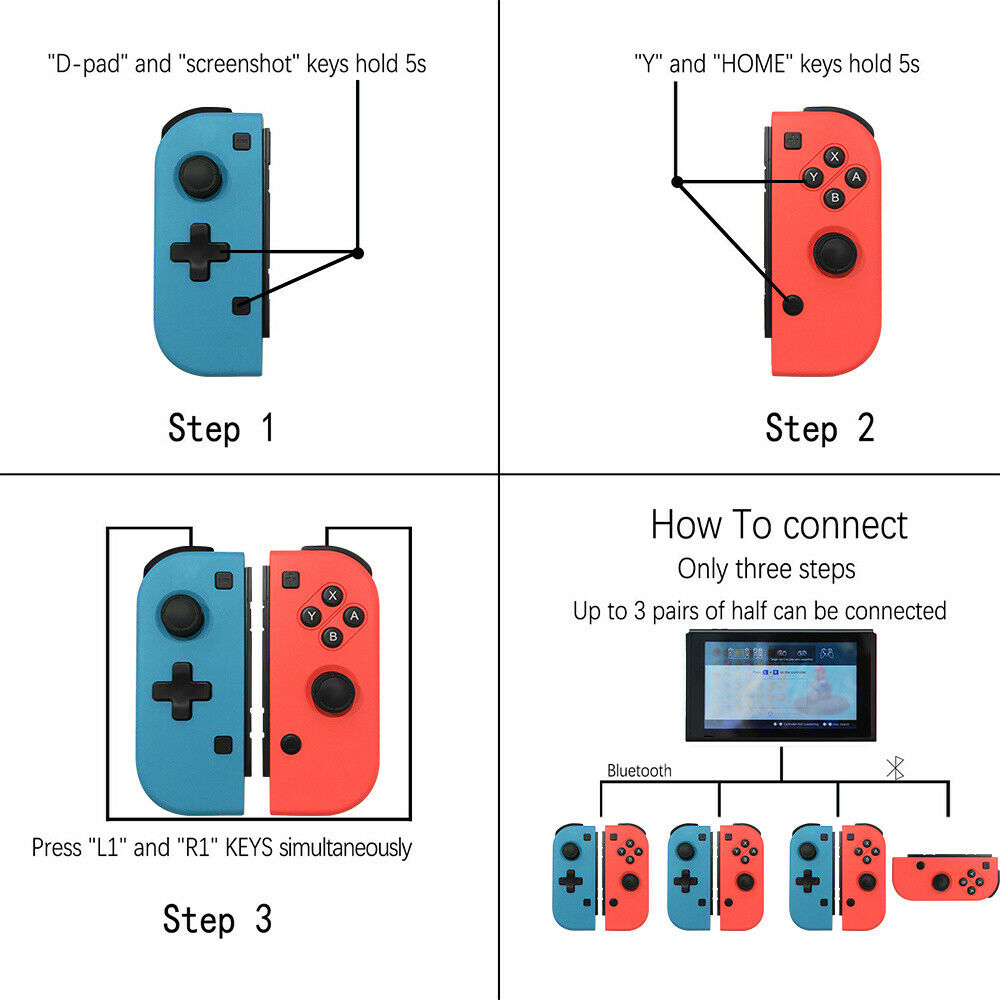

A. Connecting a pair of controllers (A Left Controller plus a Right Controller) as an Entire Controller

Step 1: Press “screenshot” key and hold for 4s to power a Left Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully.

Step 2: Press “HOME” key and hold for 4s to power a Right Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully.

Step 3: After the both controllers are paired with the console successfully, press “L1” key plus “R1” key simultaneously once, the corresponding LED(s) will be solid bright in each of the both controllers, it means that an Entire Controller (a Left Controller + a Right Controller) is connected to the console successfully and ready to be used.

Step 4: Press “B” key to back to the main interface of the console.

B. Connecting a Left Controller as an independent controller

Step 1: Press “screenshot” key and hold for 4s to power a Left Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means that the controller is paired with the console successfully.

Step 2: Press “SL” key plus “SR” key simultaneously once, the corresponding LED(s) will be solid bright in the Left Controller, it means that the Left Controller as an independent controller is connected to the console successfully and ready to be used.

Step 3: Press “left of D-Pad” key to back to the main interface of the console. 5. Controller parameter reference Item Reference value Operating voltage DC 3.7V-4.2V Operating current 20-30mA Static current 10-80uA Vibrating current 80-150mA USB input voltage/current DC 5V/500mA Available distance ≤8m Battery voltage/capacity 3.7V/300mAh Controller power-on time Around 4h (fully charged) Charging time Around 2h Static time Around 25 days Net weight A pair of controllers: 80g (102g including a charging cable and a user guide) Dimension A single controller: 44*28*102.6mm Packing list A pair of controllers, a charging cable and a user guide Remark: The above parameters are for references only, they are subject to the actual product. 6. Precautions

1) Please don’t store this product in damp or high temperature places;

2) Do not knock, beat, pierce or try to disintegrate this product so as not to damage it unnecessarily;

3) Don’t discard it with garbage as this product is with a lithium battery built-in;

4) Don’t use this product near fire or heat sources;

5) Unauthorized or non-professional personnel are not allowed to disassemble this product, otherwise it won’t be in the scope of after-sales warranty Packing list 1x Gamepad

1x Charging Cable
